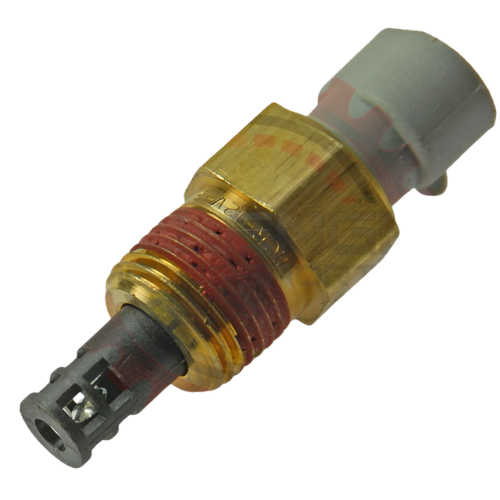

Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034

ACDelco Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor

FEATURES:

• Genuine Delphi Sensor
• Robust Design
• Cost Effective
• 100% Calibration Certified
• Thermistor Technology
• Typical Voltage Supply: 5V DC
• Operating Temperature: -40 C to 135 C
• Sensor Body Material: Brass
• Hex Size: 18.90 mm (3/4")
• Thread Size: 3/8" - 18 NPTF
• Threads treated with sealing compound
• Sealing Pressure: 200 kPa
• Dissipation Constant: * N/A
• Thermal time constant: <15 seconds

Cross Reference Numbers:

• Delphi: 25037225
• Delphi: 25036751
• Delphi: 25037034
• Delphi: 25037334
• AC Delco: 213-192
• AC Delco: 213-190
• Motec: 54001
• Most aftermarket ECU's on the market such as Haltech, Electromotive, Autronic, Bigstuff3, etc.
• VERY common sensor with hundreds of other applications
