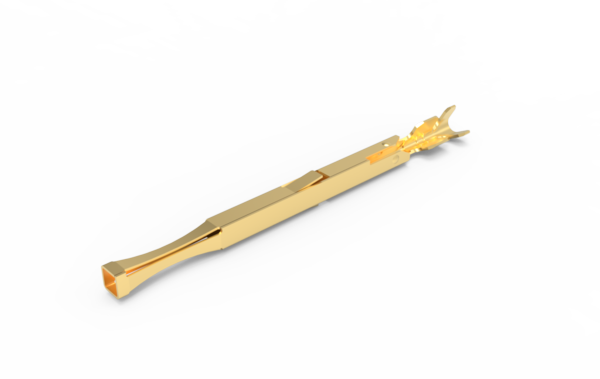

Virginia Panel Corp Connector 610138116
Virginia Panel Corp Connector 610138116
Regular price
$13.18
Regular price
$15.00
Sale price
$13.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Specifications | |
|---|---|
| Operating Voltage & Current | 5 Amps Max. Continuous; 600 volt Max. use of wire Mil-W-16878/4 |
| Contact Resistance | 25 mOhms Max. Measured at 50 mV @ 100 mA |
| Dielectric Withstanding Voltage (DWV) |
1500 VDC Min. |
| Insulation Resistance | 5000 MOhms Min. |
| Contact Body | BeCu |
| Contact Plating | 50µ" Au over 100µ" Ni |
| Cycle Life | 20,000 Cycles |
| RoHS Directive 2011/65/EU Status | Compliant |
| REACH Article 33 Status | Compliant |
| ECHA Article 59 of Reach Regulation | Compliant |
| AVG Mating Force(lbs) | 0.24 |
Signal, Contact, Receiver, QuadraPaddle, 5 Amp, 22-28 AWG, Crimp, 50µ" Au
*Please note: The difference between this p/n and 610138216 is the amount of gold plating. See below.
P/n 610138116- 50µ" Au
P/n 610138216- 30µ" Au
Primary mating contact 610138112. (May mate with other ITA contacts, as well.)
